400W isolated DC-DC converter Wide input and regulated single output

Name: 400W isolated DCDC converter Wide input and regulated single output
Brand: MORNSUN
Price: 1 USD

Brand Name : MORNSUN

Model Number : VCF48_QBO-400W(F/H)R3 Series

Certification : CE

Place of Origin : China

MOQ : 100PCS

Price : Negotiated

Payment Terms : T/T

Supply Ability : 500Kpcs/month

Packaging Details : Carton packed

Input voltage : 48VDC

I/O isolation test voltage : 2.25K VDC

Operating ambient temperature range : -40C to + 85C

MTBF(MIL-HDBK-217F@25C) : 1000K hours

Dimensions : 57.9 x 36.8 x 12.9 mm

Weight : 71.4g(Typ.)

Case Material : Aluminum alloy case

Contact Now

400W isolated DC-DC converter Wide input and regulated single output

Descriptions

VCF48_QBO-40W(F/H)R3 series is a high-performance product designed for the field of communication powers up.The DC-DC converters feature 40W output power with no requirement for minimum load, wide input voltage from 36-75VDC, and allowing operating temperature as hige as 85C. Addtional product features include input under-voltage protection, output over-voltage, over-current, short-circuitandover-temperature protection,remote On/Off control,remote sense compensation,output voltage trim adjustment.The products meet CLASB of CISPR32/EN5032 standards by ading there commended external components,and they are widely used in applications such as battery power suplies, industrial control,electricity,instruments,communication and inteligent robotic.

FEATURES

Wide input voltage range: 36-75VDC
High efficiency up to 95%
Basic insulation, I/O isolation test voltage 2250VDC
Operating ambient temperature range -40C to +85C
Input under-voltage protection, output
over–voltage, over-current, short-circuit,over-temperature protection
Industry standard 1/4-Brick package and pin-out
Meet EN62368 standards

Specifications

Selection Guide
Certification	Part No.①	Input Voltage (VDC)		Output		Full Load Efficiency(%) Min./Typ.	Max. Capacitive Load(µF)	Min. Capacitive Load③(µF)
		Nominal (Range)	Max.②	Voltage (VDC)	Current (mA) (Max./Min.)
--	VCF4812QBO-400W(F/H)R3	48 (36-75)	80	12	33000/0	93/95	10000	470
	VCF4815QBO-400W(F/H)R3			15	26500/0	93/95	6800	470
	VCF4824QBO-400W(F/H)R3			24	16500/0	93/95	3300	470
	VCF4828QBO-400W(F/H)R3			28	14200/0	93/95	3300	470
Note: ①Use“F”suffix is for added aluminum baseplate and“H”suffix for heat sink mounting. We recommend to choose modules with a heat sink for enhanced heat dissipation and applications with extreme temperature requirements; ②Exceeding the maximum input voltage may cause permanent damage; ③In order to ensure the output stability, a minimum capacitive load must be connected to the output side of the product.

Input Specifications
Item	Operating Conditions		Min.	Typ.	Max.	Unit
Input Current(Full load/no load)	Nominal input voltage	VCF4812QBO-400W(F/H)R3	--	--	8961/ 120	A
		VCF4815QBO-400W(F/H)R3	--	--	8961/ 150
		VCF4824QBO-400W(F/H)R3	--	--	8961/ 120
		VCF4828QBO-400W(F/H)R3	--	--	8961/ 150
Reflected Ripple Current	Nominal input voltage		--	200	--
Surge Voltage (1sec. max.)			-0.7	--	90	VDC
Start-up Voltage			--	--	36
Input Under-voltage Protection			32	33	--
Start-up Time	Nominal input voltage, Constant resistance load		--	--	100	ms
Input Filter			LC filter
Hot Plug			Unavailable

Mechanical Specifications
Case Material	Aluminum alloy case
Dimension	VCF48_QBO-400WR3	57.9 x 36.8 x 12.9 mm
	VCF48 QBO-400WHR3	57.9 x 36.8 x 25.6 mm
	VCF48_QBO-400WFR3	62.0 x 56.0 x 14.7 mm

Weight	VCF48_QBO-400WR3	71.4g(Typ.)
	VCF48_QBO-400WHR3	102.8g(Typ.)
	VCF48_QBO-400WFR3	91.4g(Typ.)
Cooling Method	Free air convection or forced air convection

400W isolated DC-DC converter Wide input and regulated single output

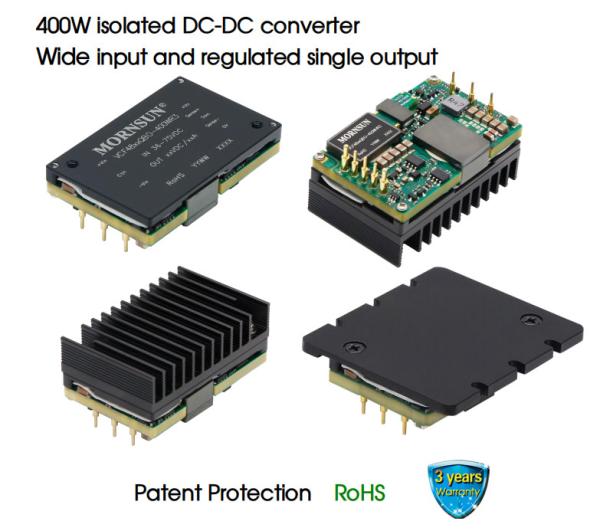

400W isolated DC-DC converter Wide input and regulated single output Images
